| description

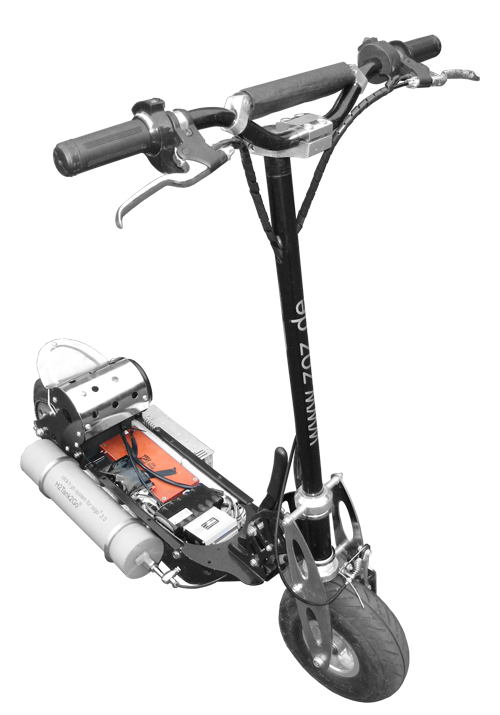

The isigo®H2.0 electric kickboard is a hydrogen driven vehicle demonstrating super safe Zoz-Hydrogen-Technology. Based on the solely battery-driven isigo®1.0 this kickboard comes with two metal hydride based H2Tank2Go®-cartridges and a 320 W PEM fuel cell. At optimal conditions it offers up to max. 120 km of range.
why & what
In electro/-hydrogen mobility world, much is promised and a lot expected. In order to prove that what you see is real at this cost, we already offer the isigo ®H2.0 at no warranty and at no approval.
|
|
 Download data sheet isigo® H2.0 prototype
|
| |
|
click ‘n’ go system H2Tank2Go®
|
| |
| |
|
|
isigo® H2.0 technical data, dimensions &
cost
|
|
max. speed
|
ca. 35 km/h1)
|
|
range
|
max. 120 km1)
|
|
drive-power
|
500 W
|
|
load capacity
|
100 kg
|
|
brakes
|
disc brakes
|
|
fuel-cell
|
PEM-FC, 320 W (24V)
|
|
converter
|
DC-DC (24V → 48V)
|
|
buffer micro-bat
|
Li-ion, 48 V / 2,5 Ah
|
|
tank
|
H2Tank2Go® (2x)
|
|
operating pressure tank
|
< 10 bar
(Hydrolium®, solid state absorption)
|
|
refueling time
|
click`n`go (10s)
|
|
pressure reducer
|
0,5 bar
|
|
dimensions
|
1085 × 285 × 460 mm
|
|
net weight [kg]
|
39
|
|
available colours
|
black
|
|
net cost
|
€ 5.000,00
|
1) depends on riding, route and load
|
|
|
| |

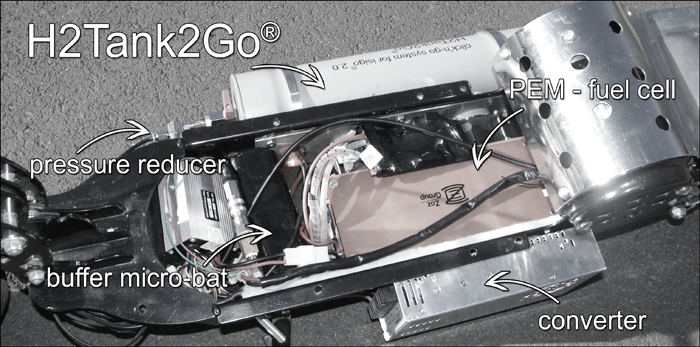

| H2-isigo® prototype overview |
|
